VS808 1200W Triple Wavelength Diode Laser Hair Removal Machine

Professional Triple Wavelength Diode Laser Platform

The VS808 is a professional diode laser hair removal machine developed for beauty salons, aesthetic clinics and trained laser practitioners. Its triple-wavelength handpiece combines 755nm, 808nm and 1064nm laser output, giving operators a flexible platform for building client-specific hair-reduction protocols.

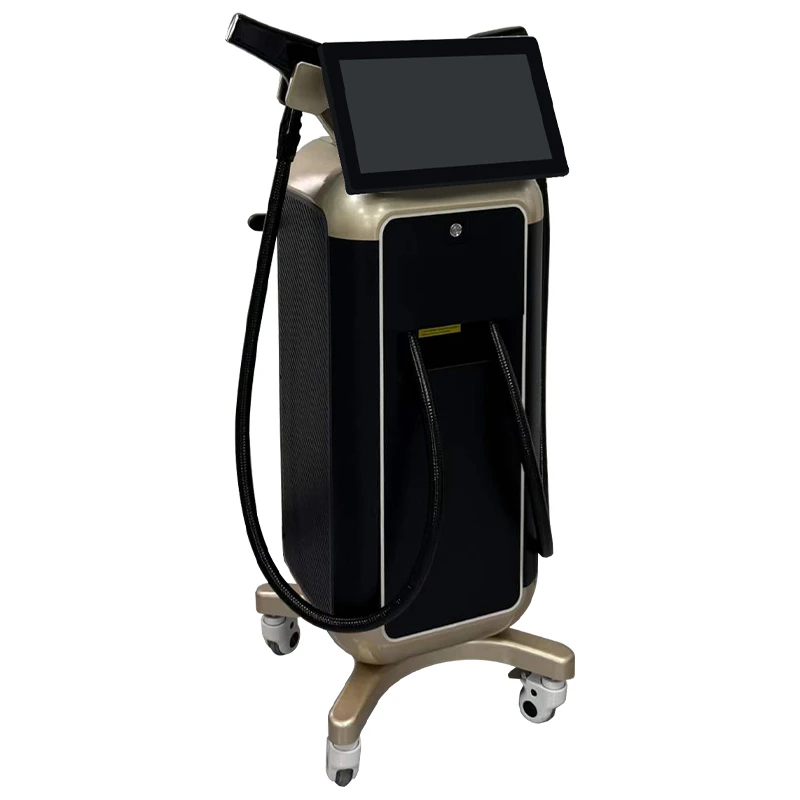

A large 15.6-inch touchscreen provides central control over treatment settings, while the mobile floor-standing design makes the system easy to position within a professional treatment room.

755nm, 808nm and 1064nm Wavelength Combination

The VS808 combines three wavelengths in one diode-laser platform. Each wavelength interacts with tissue at a different depth, allowing a trained operator to select suitable settings according to the treatment area, hair characteristics, skin assessment and approved operating protocol.

• 755nm: commonly selected for protocols involving finer or more superficial hair.
• 808nm: a widely used diode-laser wavelength for general professional hair-reduction treatments.
• 1064nm: provides deeper wavelength penetration and can be incorporated into appropriately selected protocols.

Client suitability must always be determined through professional consultation, skin typing, contraindication screening and a patch test where required.

1200W Output and Adjustable Parameters

The supplied specification sheet lists a rated output of 1200W, adjustable pulse width from 0 to 600ms, energy density from 1 to 120J/cm² and an operating frequency from 1 to 10Hz.

These adjustable parameters allow trained operators to configure the system for different body areas and professional protocols. Settings must remain within the manufacturer’s instructions and applicable local regulations.

Contact Cooling System

The treatment handpiece incorporates sapphire contact cooling supported by TEC/Peltier and compressor cooling. The specification sheet lists a cooling temperature of ≤ −5°C.

Contact cooling is designed to help manage skin-surface temperature during correctly performed treatments. It should not be described as completely painless, and appropriate client monitoring remains essential.

Optional Treatment Windows

The product artwork shows multiple treatment-window options, including a small precision window and larger windows intended for different treatment areas. The exact window dimensions supplied depend on the selected handpiece and configuration.

Small windows can support precise work on limited areas, while larger windows are intended to improve coverage efficiency on areas such as the arms, legs or back.

Three Available Configurations

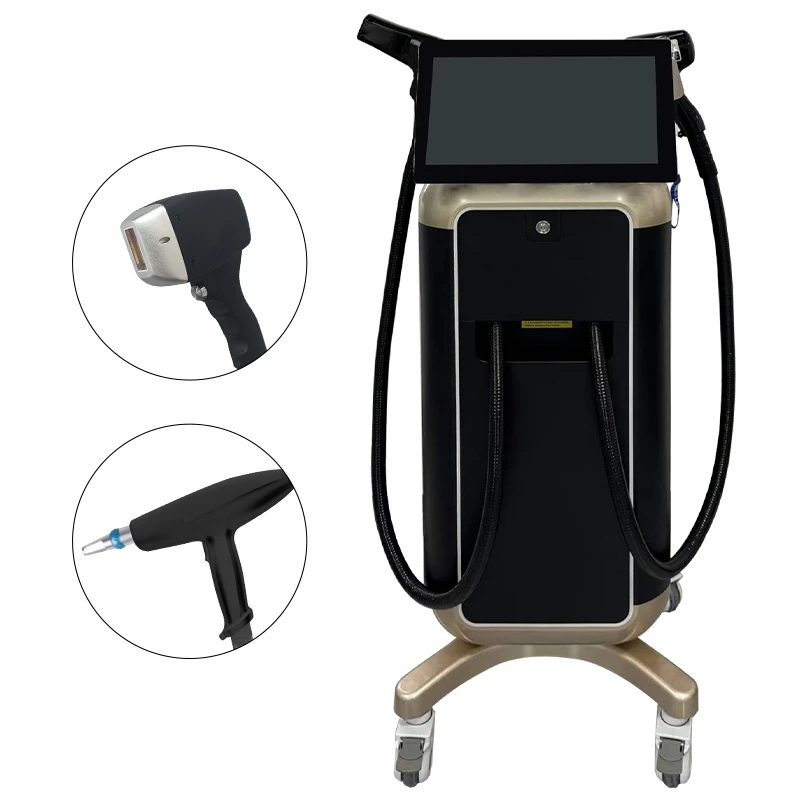

Configuration 1: Diode Laser + Optional Pigment/Tattoo Handpiece

Includes one triple-wavelength diode-laser handpiece together with the additional pigment/tattoo-treatment handpiece shown in the supplied product material. The exact laser type, wavelengths, tips and approved indications must be confirmed before publishing this option.

Configuration 2: Single Diode Laser Handpiece

Includes one triple-wavelength diode-laser handpiece for professional hair-reduction treatments. This is the most straightforward option for salons introducing diode-laser services.

Configuration 3: Dual Diode Laser Handpieces

Includes two diode-laser handpieces. This configuration may be suitable for businesses that require different treatment-window options or want a second handpiece available within the same system.

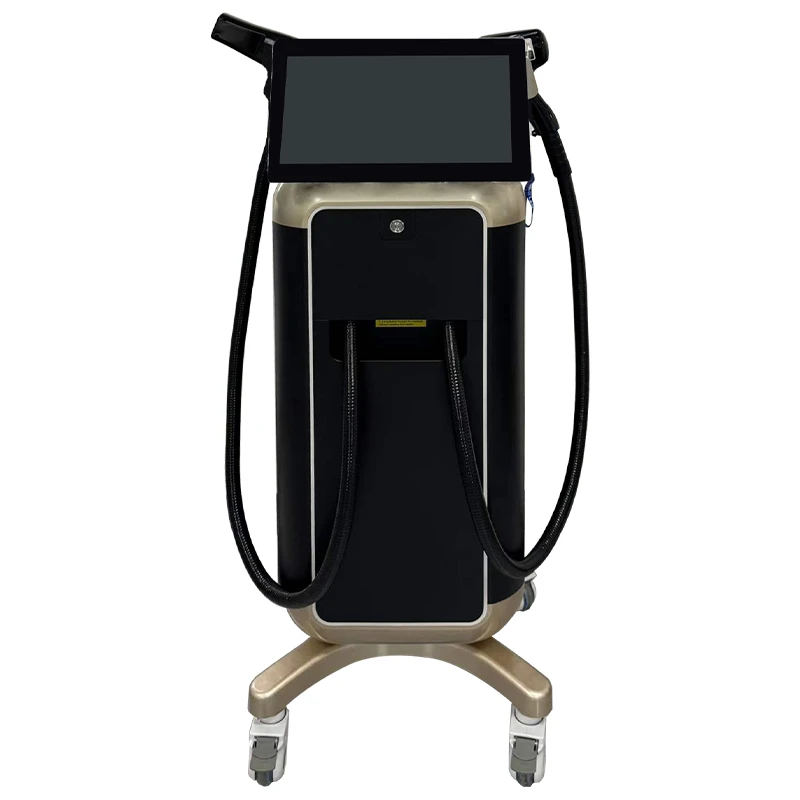

Designed for Professional Treatment Rooms

• Large adjustable touchscreen display
• Mobile base with locking castors
• Integrated handpiece holders
• Adjustable pulse width, energy and frequency
• Contact and compressor cooling
• Single-, dual- and combination-handpiece options

Technical Specifications

Frequently Asked Questions

What wavelengths does the VS808 use?

The diode-laser handpiece combines 755nm, 808nm and 1064nm wavelengths. Treatment settings and client suitability must be determined by a trained practitioner according to skin type, hair characteristics, treatment area and the manufacturer’s approved protocol.

Is the VS808 intended for home use?

No. The VS808 is a professional floor-standing laser platform intended for appropriately trained and, where required, licensed practitioners. Operators must comply with local laser-safety, training, insurance, facility and device-registration requirements.

Does the machine guarantee permanent hair removal?

No complete or permanent removal guarantee should be made. Results depend on hair-growth cycles, treatment settings, client characteristics and completion of an appropriate treatment programme. Use “hair reduction” unless your device certification specifically authorises a stronger claim.

Professional-Use and Safety Notice

This is professional laser equipment. It should be operated only by appropriately trained personnel using suitable protective eyewear, client consultation, skin assessment, contraindication screening and documented treatment protocols.

Specifications, regulatory status, treatment indications and included accessories may vary by configuration and destination country. Verify the machine label, user manual, certification documents and local legal requirements before ordering or operating the system.
