Crystallite Depth 8 Gold RF Microneedling Machine – FR-B27 Morpheus 8 Alternative, 8mm Deep Fractional RF

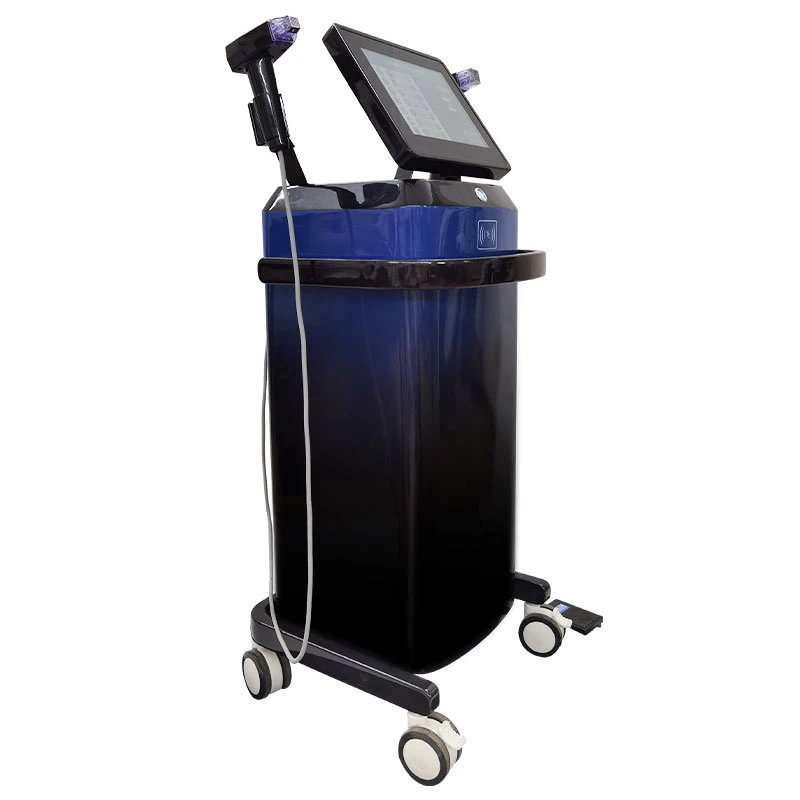

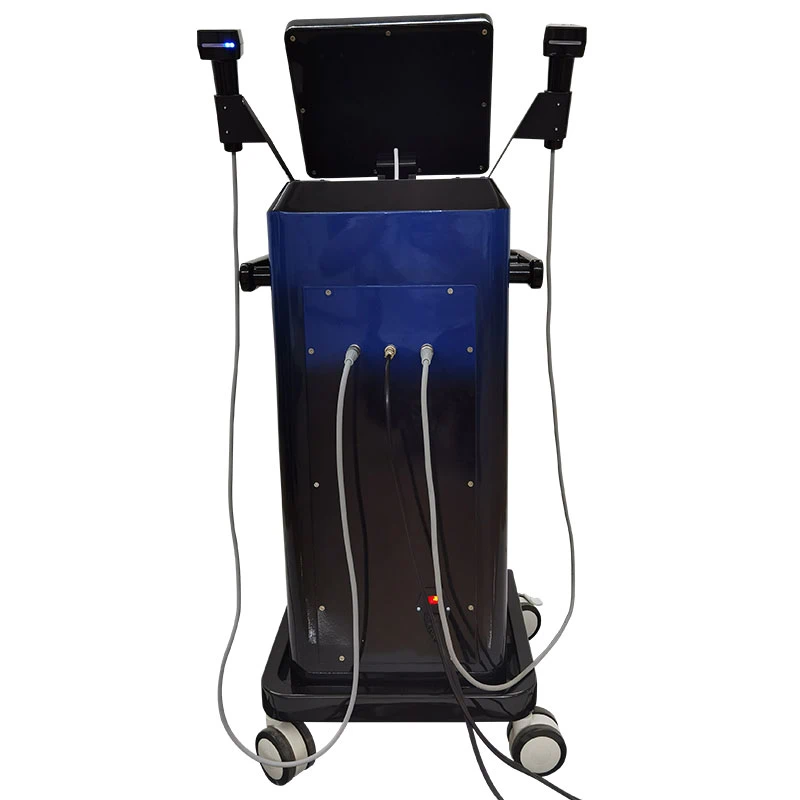

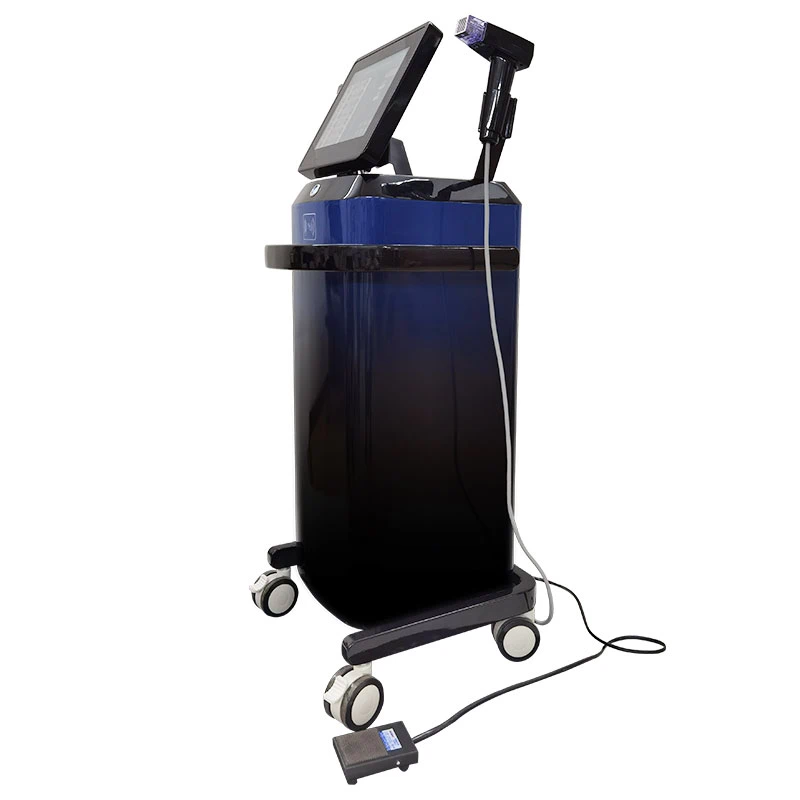

Crystallite Depth 8 – Gold RF Microneedling Machine

Crystallite Depth 8 is currently one of the deepest penetrating professional RF microneedling devices available. It combines insulated gold-plated microneedles, 4MHz radiofrequency energy, and fractional matrix technology. The needles can be adjusted from 0.5 mm to 7 mm in depth, with the thermal effect extending an additional 1 mm, allowing treatment to reach up to 8 mm into subcutaneous fat layers. This enables true minimally invasive remodeling of deep tissue, collagen regeneration, and fat coagulation.

The machine’s signature Burst Mode automatically releases RF energy at multiple depths within a single pulse. It targets three different skin layers sequentially in milliseconds, significantly shortening treatment time, reducing surface damage, and delivering more uniform results. This makes it particularly suitable for full-body fractionated treatments, deep acne scar repair, stretch mark improvement, skin tightening, and localized fat reduction.

As a high-performance and more affordable alternative to Morpheus8, Crystallite Depth 8 is widely used by medical spas, aesthetic clinics, and beauty professionals seeking advanced anti-aging and skin resurfacing solutions.

Core Advantages

• Deepest treatment depth currently available — up to 8 mm thermal effect
• Exclusive Burst Mode for multi-layer treatment in one pass
• Insulated gold-plated needles (0.22 mm body tapering to 0.1 mm tip) — minimal epidermal damage, almost no pain, no bleeding, very low risk of pigmentation
• Four disposable probe types: 12P (small areas/eyes), 24P (face/neck), 40P (body/large areas), Nano (enhanced delivery & tightening)

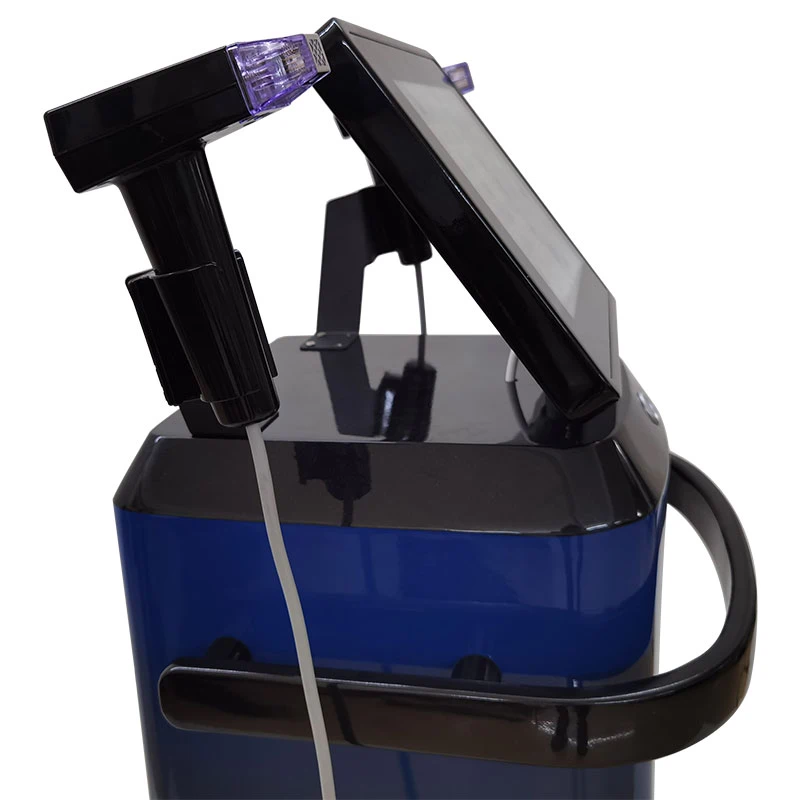

• Dual operating handles (face handle + body handle) for greater treatment versatility

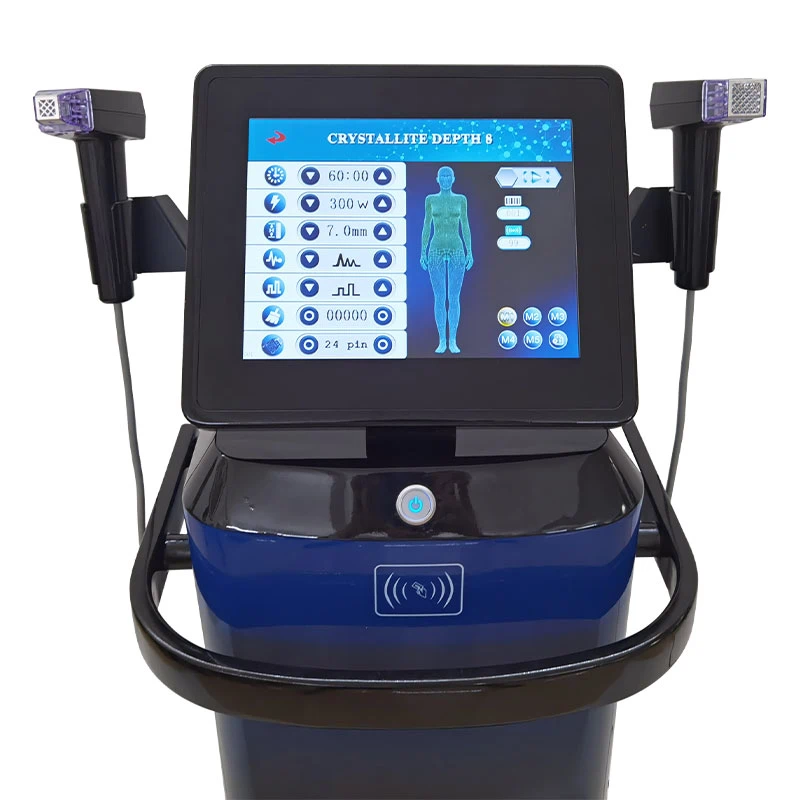

• 10.4-inch color touchscreen with intuitive interface and 5 customizable parameter presets
• Safe and effective on all skin types (start conservatively on sensitive or dark skin)

How It Works

The insulated microneedles rapidly penetrate the epidermis, emit RF energy only from the tip, then retract immediately. This creates precise micro-injuries and thermal zones deep in the dermis and subcutaneous layer while protecting the surface. The treatment simultaneously:

• Triggers strong collagen and elastin regeneration
• Coagulates and remodels subcutaneous fat
• Contracts fibrous tissue for lifting and tightening
• Reduces sebaceous gland activity, controls oil, and treats active acne
• Opens micro-channels for better penetration of repair serums, growth factors, or antioxidants (1+1>2 synergistic effect)

Main Treatment Applications

Face & Neck

• Fine lines, crow’s feet, forehead lines, nasolabial folds, neck lines
• Skin tightening, lifting, pore minimization, overall rejuvenation
• Acne scars, pitted scars, depressed scars, burn scars
• Active inflammatory acne, oil control, large pore reduction

Body & Postpartum

• Stretch marks, swelling marks, cellulite improvement
• Abdominal stretch marks, buttock/leg swelling marks
• Localized fat remodeling and skin laxity tightening
• Underarm odor and excessive sweating support
• General skin texture refinement and maintenance

Technical Specifications

Product Name: Crystallite Depth 8 (Morpheus 8 equivalent) Touch Screen: 10.4 inches Therapy Probes: 12P, 24P, 40P, Nano (all disposable/single-use) Depth Adjustment: 0.5–7 mm RF Frequency: 4 MHz Power Range: 10–300 W Operating Voltage: AC 110–230 V ±10%, 50/60 Hz Air Box Dimensions: 49 × 46 × 102 cm Gross Weight: 28.4 kg

Probe & Parameter Guidelines (adjust according to skin feedback)

12P — small areas/eyes/nose: 40–100 W, 0.5–2.5 mm, Regular mode 24P — face/neck: 60–150 W, 0.5–2.5 mm, Regular mode 40P — body/large areas: 80–200 W, 2.0–7.0 mm, Burst Mode recommended Nano — nutrient introduction/tightening: 40–100 W, 1.0–2.5 mm, Regular mode

Typical course: 3–5 sessions spaced 4–6 weeks apart. Visible improvement often begins within days, with continued collagen remodeling over 2–3 months.

Currently, we have goods in stock in Los Angeles, USA warehouse. They are available on a first-come, first-served basis.
